Air Bellow Maintenance: Essential Guide for Engineers and Experts

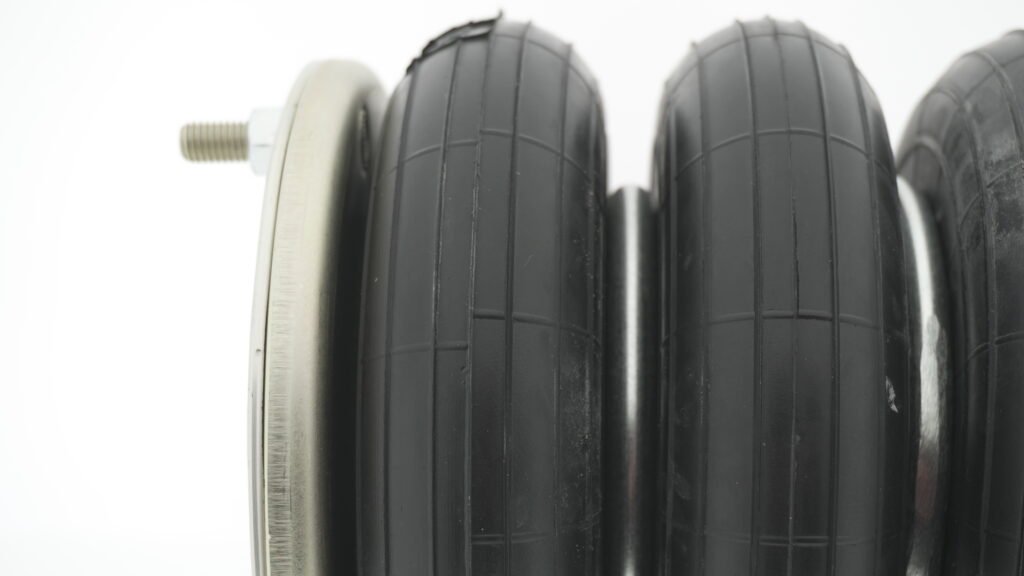

Air bellows, or air springs, are integral to a broad range of industrial and vehicular applications, offering versatile, frictionless, and vibration-isolating capabilities. Maintaining these components correctly ensures not only the longevity of the air bellows but also the efficiency of the equipment in which they are installed. Proper maintenance helps in avoiding operational disruptions and maximizing system reliability.

In this article, we delve into key aspects of air bellow maintenance, emphasizing the methods engineers need to know to keep these critical components in optimal condition.

Common Causes of Air Bellow Wear

Air bellows typically fail due to poor alignment, overloading, or improper inflation. Factors such as exposure to corrosive environments or excessive temperatures can also degrade the rubber compounds and metallic parts of the bellows. To minimize these risks, engineers must conduct frequent inspections and adhere to strict operational guidelines.

Misalignment, for instance, places additional strain on the rubber body, leading to uneven wear. Air bellows like those produced by Tevema can tolerate a certain level of misalignment; however, exceeding these limits can lead to premature failure. Ensuring that all components are correctly aligned, particularly during installation, can significantly reduce wear.

Another major cause of failure is improper inflation pressure. Over-inflation can lead to rupture, while under-inflation may cause inadequate support or poor vibration isolation. The recommended pressure levels for Tevema air bellows must be adhered to closely for both safety and performance.

Inspection Procedures for Air Bellows

Regular inspections are essential for identifying signs of fatigue, cracking, or other forms of wear before they lead to major failures. Inspection should focus on both the rubber convolutes and the metallic components, such as end closures and crimped bead plates.

Key areas to inspect include:

  • Surface Condition: Look for cracks, abrasions, or blistering on the rubber. Blisters indicate internal damage due to excessive heat or incorrect pressure.
  • Attachment Points: Ensure all bead plates, crimp rings, and nuts are secure, as loose fittings can contribute to leaks or failure.
  • Pressure Levels: Always verify that the air bellow pressure is within the specified range. A four-ply construction air bellow, for example, can withstand up to 12 bar pressure for higher-load applications, whereas standard models are typically limited to 8 bar.

Additionally, engineers should ensure that safety stops are in place. These stops help prevent over-extension and over-compression of the bellows, which is critical to maintaining their functional integrity.

“An ounce of prevention is worth a pound of cure,” as Benjamin Franklin once said—a sentiment that rings particularly true for air bellow maintenance.

Operational Tips for Extending Air Bellow Life

Air bellows require a stable environment to operate effectively. To maximize their lifespan, it is crucial to consider both working media and environmental factors:

1. Working Media

Tevema air bellows are designed to work primarily with compressed air. However, they can also function with nitrogen, water (with glycol), or oil. When water is used, the metallic components should be constructed from stainless steel to resist corrosion.

2. Operating Temperature

The choice of elastomer can affect performance under different temperature conditions. Tevema air bellows are available in several material types, including natural rubber (NR/SBR), chlorobutyl, nitrile (NBR), and ethylene propylene diene (EPDM). Each material offers unique properties:

  • NR/SBR: Ideal for temperatures between -40°C and +70°C.
  • Chlorobutyl: Resistant to acids and can handle temperatures from -30°C to +115°C.
  • NBR: Best for applications involving oil exposure, with an effective range of -25°C to +110°C.

Selecting the correct elastomer for your operating environment will help avoid premature aging and failure.

3. Contaminant Protection

Ensure that air bellows are not exposed to sharp objects or abrasive materials. Contact with such surfaces can lead to tears and punctures, compromising the pressure integrity of the air bellow. When used in harsh environments, protective boots can help shield the bellows from contaminants.

Lubrication and Maintenance Intervals

One of the key advantages of Tevema air bellows is their low maintenance requirement. Unlike traditional actuators, air bellows have no sliding seals or pistons, meaning there is no need for regular lubrication. However, ensuring proper lubrication of any surrounding components that interact with the bellows is still necessary to prevent inadvertent damage.

Maintenance intervals should be tailored according to the operating conditions. In general, inspection every 6 to 12 months is sufficient for most industrial applications, although environments with extreme conditions may necessitate more frequent checks.

Replacement Guidelines

Eventually, even the most well-maintained air bellows need replacing. Key indicators for replacement include:

  • Visible Deterioration: Severe cracking or worn rubber indicates it’s time for a new air bellow.
  • Inconsistent Performance: If the air bellow no longer maintains the correct height or fails to isolate vibrations effectively, replacement is recommended.
  • Leakage: Persistent air leaks, even after reseating or tightening fittings, signify that the internal fabric or rubber may be compromised.

“The most valuable thing an engineer can bring to maintenance is foresight,” stated Nikola Tesla—a reminder that proactive replacement can prevent costly downtimes.

Proper maintenance of air bellows is a straightforward but vital practice for ensuring the efficiency and longevity of machinery. By adhering to regular inspectionsoperational guidelines, and correct replacement procedures, engineers can maximize the performance of Tevema air bellows while minimizing costly repairs or equipment failure. Ensuring alignment, appropriate inflation pressure, and regular monitoring of wear are all simple but effective steps that can significantly extend the lifespan of these crucial components.

In summary, proper air bellow care is not just about extending component life but also about preserving the overall integrity and performance of the systems in which they are used.
