Enhancing efficiency and reliability with air bellows
Electric systems require highly efficient, durable, and adaptable components to ensure optimal performance. Air bellows are essential elements, offering advantages in vibration isolation, motion control, and force exertion. They improve efficiency while ensuring maximum reliability across various industrial applications.
Air bellows function by utilizing compressed air to absorb shocks, maintain pressure, and reduce mechanical strain. They operate at pressures up to 12 bar, with stroke lengths from 20 mm to 400 mm, depending on design. The force output varies from 1 kN to over 400 kN, depending on convolution type. Their temperature range spans from -40°C to +115°C, making them suitable for extreme conditions. Materials such as reinforced elastomers and stainless steel components enhance durability. Their efficiency and robustness make them indispensable in applications requiring precision force control, vibration damping, and load management.
How air bellows contribute to system stability
One major function of air bellows is their ability to absorb and isolate vibrations. These components maintain system integrity by reducing unwanted oscillations. This is essential for applications requiring precise force application, where consistent motion and control matter. The advanced materials in air bellows construction include multi-layer reinforced rubber compounds, ensuring resistance to environmental conditions such as temperature extremes, oil, and chemical exposure.
Standard designs support axial loads from 5 kN to 450 kN, with natural frequencies as low as 1.4 Hz at operational pressures. Compression and extension cycles exceed 1,000,000 operations, confirming their longevity in high-cycle applications. Air bellows also feature customizable port locations and mounting configurations, allowing easy integration into complex systems. Their ability to operate with compressed air, nitrogen, or oil-based media enhances versatility. These properties make air bellows essential for ensuring precision control in industrial environments requiring adaptable force management.
Design variations of air bellows

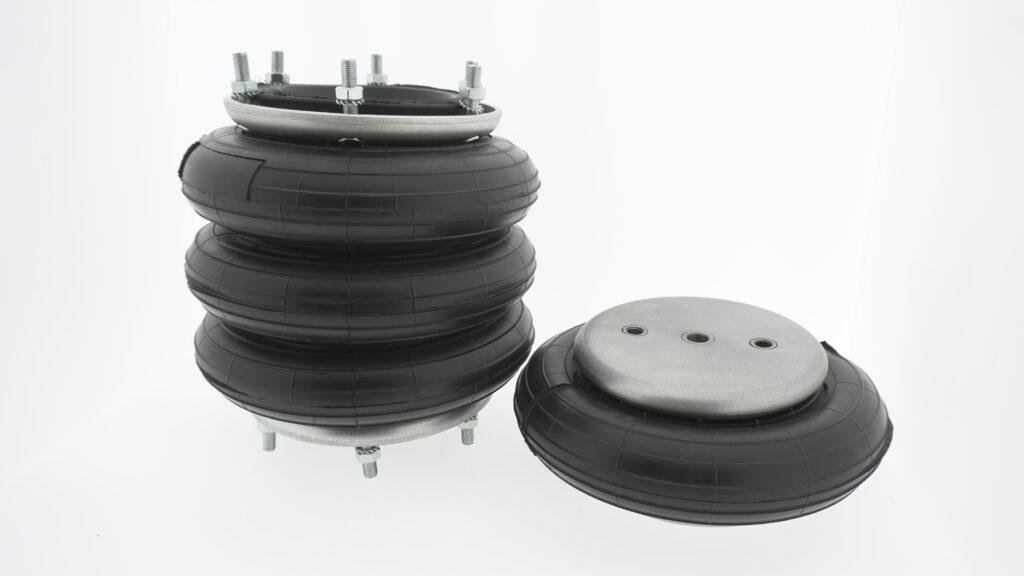

Air bellows come in different designs, each catering to specific industrial requirements. The three primary configurations include:
- Single convolution: Compact design for minimal movement applications, with load capacities up to 150 kN.
- Double convolution: Balanced flexibility with stroke lengths up to 200 mm and a maximum force capacity of 250 kN.
- Triple convolution: Extended stroke of up to 400 mm, supporting high load applications exceeding 400 kN.
Each variation is available with bead rings, crimped closures, or dismountable assemblies, ensuring compatibility with multiple operational setups. Mounting hole patterns, bead ring diameters, and fitting configurations can be adapted to meet installation constraints. Durability is further enhanced by high-strength elastomers, multiple reinforcing plies, and precision-milled steel components, ensuring long-term operational stability in demanding environments.
Material advantages for superior durability
Manufactured from natural rubber (NR), chlorobutyl (CIIR), nitrile (NBR), ethylene propylene diene (EPDM), or chloroprene (CR), air bellows provide exceptional durability. These materials enable long-lasting performance in demanding environments. The following advantages ensure consistent functionality:
- Temperature tolerance from -40°C to +115°C, depending on the elastomer type.
- Resistance to oils, fuels, and environmental degradation, extending service life.
- Enhanced mechanical flexibility, allowing for repeated compression and expansion cycles without structural fatigue.
Steel components, including galvanized or AISI-304 stainless steel, provide corrosion resistance. Air bellows with additional elastomer coatings enhance longevity, reducing failure risks in chemical-rich environments. Precision-molded layers create uniform pressure distribution, preventing stress concentrations that could reduce operational life. These properties ensure reliability in environments requiring continuous load-bearing and shock absorption.
Air bellows as industrial actuators
Beyond vibration isolation, air bellows function as actuators, replacing traditional pneumatic and hydraulic cylinders. Their main advantages include:
- Compact installation height, enabling space-efficient configurations.
- Lateral misalignment tolerance up to 30 mm, eliminating the need for precision guides.
- Force uniformity, ensuring smooth operation without localized pressure spikes.
Operating at pressures up to 12 bar, air bellows generate adjustable force outputs, making them ideal for systems requiring controlled movement. Their design eliminates the stick-slip effect, offering smooth linear motion. Unlike traditional cylinders, air bellows contain no sliding seals, reducing wear and increasing operational longevity. The absence of metal-on-metal contact minimizes maintenance requirements, cutting operational downtime significantly. This makes them a cost-effective and reliable solution for industries requiring precision control and durability.
Energy efficiency and sustainability
As industries prioritize sustainability, air bellows contribute to energy-efficient operations. Unlike mechanical components, they require minimal energy input and reduce friction losses. The absence of lubricants and seals lowers maintenance requirements. Their operational efficiency surpasses 99% in vibration isolation, ensuring energy is directed toward productive output instead of being lost to oscillations.
By using elastomer compounds with low hysteresis, air bellows minimize energy dissipation during load cycles. The result is improved force transmission efficiency, reducing operational strain. Materials free from harmful compounds align with environmental compliance regulations, ensuring sustainable use in industrial systems. The combination of energy efficiency and low maintenance requirements makes air bellows an optimal choice for industries focused on reducing long-term operational costs.
Compact solutions for advanced applications
Due to their adaptability, air bellows excel in applications requiring precise force modulation, compact installation, and vibration control. Their capability to function with compressed air, nitrogen, and even water-based media adds to their versatility in industrial environments.
Key benefits:
- Noise reduction: Absorbs sound and prevents mechanical transmission of vibrations.
- Extended equipment lifespan: Reduces mechanical stress and premature component failure.
- Height regulation: Maintains stable operation across fluctuating load conditions.
The wide size range of air bellows ensures suitability for diverse applications. Models feature diameters from 80 mm to 950 mm and stroke lengths from 20 mm to 400 mm. Their flexible integration options allow for customized air inlet configurations and mounting variations, facilitating seamless integration into existing industrial systems. These features ensure efficiency across multiple industries requiring high-performance vibration isolation and force modulation.
Choosing the right air bellows
Selecting the right air bellows depends on operating pressure, load demands, environmental exposure, and design constraints. Critical factors include:
- Required force output (ranging from 1 kN to 450 kN).
- Expected stroke length (from 20 mm to 400 mm).
- Elastomer compatibility (chemical resistance and temperature tolerance).
- Mounting and installation specifications (customized bolt patterns and fitting sizes).
Advanced coating technologies can enhance resistance to chemicals, UV exposure, and abrasion, extending operational life. A well-matched air bellow system enhances efficiency, ensuring consistent, low-maintenance performance. Considering these factors ensures optimal selection, reducing operational downtime and improving long-term industrial efficiency.
Reliable performance in demanding environments
Air bellows are critical components in industrial applications, offering superior vibration isolation, motion control, and energy efficiency. Their customizable designs and reinforced materials make them essential for high-performance systems.
Their ability to withstand repeated load cycles exceeding 1,000,000 operations highlights their durability. By leveraging advanced rubber compounds, precision-manufactured steel components, and optimized pressure dynamics, air bellows ensure reliable operation in high-stress conditions. As industries continue evolving, demand for efficient and adaptable air bellows will only increase. The reliability and durability of air bellows ensure their continued role in advanced industrial applications.
