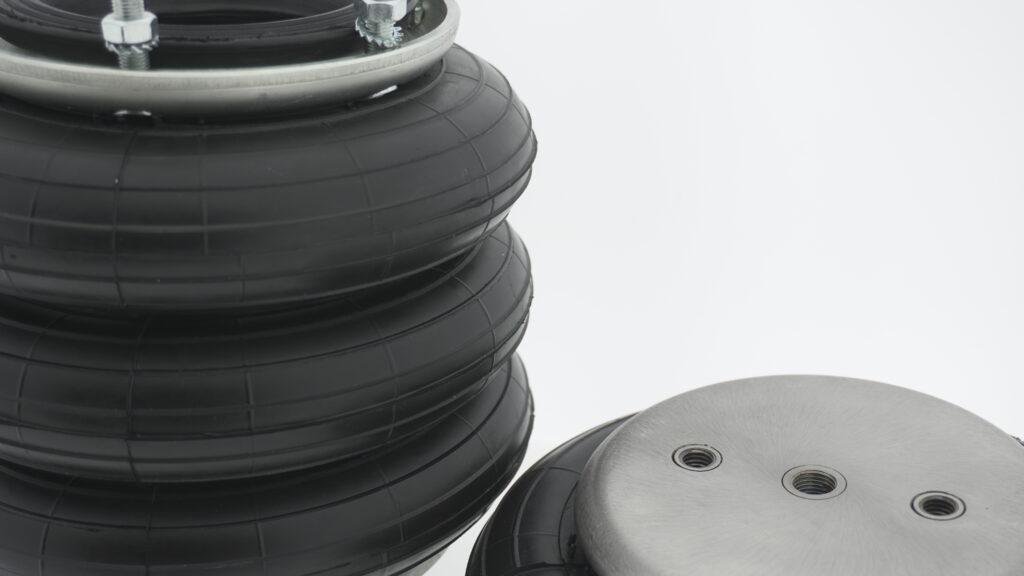

When we aim to introduce our air bellows into European markets, achieving CE marking is essential. This certification affirms our compliance with relevant EU directives and harmonized standards. It is not merely a label but a legal declaration of safety, reliability, and performance. To support our customers and partners, we have developed a comprehensive roadmap to secure CE conformity for our rubber bellows without referencing any automotive applications. Most of our air actuators operate at working pressures from 6 to 12 bar. They are constructed with natural rubber, EPDM, or NBR, reinforced with two to four plies of fabric. Axial stroke ranges from 20 mm to 445 mm, and isolation efficiency exceeds 99%. Vibration damping, load stability, and material resilience are calculated in all models. These properties ensure our air bellows meet mechanical integrity and safety expectations across varied industrial environments.
Understanding the regulatory framework
The process begins by identifying which EU directives apply to our air bellows. Most commonly, these fall under the Pressure Equipment Directive (PED) 2014/68/EU due to the operational pressure limits. In specific cases, the Machinery Directive (2006/42/EC) may also be relevant, especially if the bellows are integrated into larger mechanical systems. Our composite rubber-metal products must adhere to all safety regulations to gain approval. Each bellow’s internal volume, design pressure, and maximum expansion stroke are calculated in early design phases. For example, double convolution bellows typically allow displacements of 80 to 300 mm. Frequencies are tuned to remain under 3 Hz for optimal isolation. Our high-performance bellows that exceed 0.5 bar working pressure fall within PED scope. Thus, CE compliance is mandatory. Calculations also consider cyclic loads, temperature variation, and chemical resistance, ensuring conformity under all working conditions.
Technical documentation requirements
To legally affix the CE mark, we compile a technical file containing crucial evidence of conformity. This includes: – Detailed design specifications and technical drawings. – List of applicable standards and testing procedures. – Description of manufacturing processes and materials. – Risk assessments following ISO 12100. – Results from pressure tests, fatigue analyses, and burst strength evaluations. We document every production stage in our controlled processes, from vulcanization of rubber layers to galvanizing steel components. Our natural rubber and EPDM compounds, used based on application requirements, meet stringent thermal and chemical resistance standards. Our bellows with galvanized steel or AISI 304 stainless steel flanges are tested for both tensile pull-out strength and bolt pattern stability. Each assembly is checked for concentricity, surface flatness, and torque resistance, supporting the mechanical data in the technical file.
Role of notified bodies and conformity assessment
When our air bellows exceed the limits of Category I, we engage a Notified Body for third-party verification. The assessment routes vary. For lower-risk products, we follow Module A (internal production control). For higher categories, Module B + D or B + F applies. We partner with qualified entities recognized by the European Commission. The Notified Body evaluates our product type, verifies the design dossier, and may conduct random inspections of the manufacturing line. In addition, non-destructive testing (NDT) may be required to validate bonding integrity and wall thickness. Our facilities are ISO 9001 certified, enabling us to maintain quality assurance systems that align with CE expectations. This simplifies the assessment route and supports continuous product traceability. In triple convolution bellows, torsional resistance and dynamic flexibility are validated through mechanical stroke simulations, using values exceeding 70 mm angular deflection.
Labeling and declaration of conformity
After passing the conformity assessment, we are authorized to apply the CE mark visibly on each air bellow or its data plate. This is accompanied by a Declaration of Conformity (DoC) that includes: – Manufacturer’s name and address. – Product identification and serial number. – References to applied directives and standards. – Name and signature of the authorized signatory. Our dismountable air bellows and crimped bellows include proper marking in durable ink or engraved tags, depending on material. The DoC is retained for at least ten years after the product release. Port sizes, mounting hole diameters, and flange dimensions are specified in the attached documents. Our default G1/4″ to G3/4″ inlet ports are made with corrosion-resistant threads. Each bellow’s unique ID number links to a digital conformity record, facilitating on-site audits and post-market review.
Selecting appropriate harmonized standards
Conformity with harmonized standards streamlines CE marking. For air bellows, we apply standards such as: – EN 14986: Design of equipment for use in explosive atmospheres. – EN ISO 4413: Hydraulic fluid power – general rules and safety requirements. – EN ISO 12100: Safety of machinery – general principles for risk assessment. These standards define acceptable tolerances for flexible pressure components, mounting hardware, and reinforced rubber layers. We ensure each air actuator matches required resilience, vibration isolation, and operating pressure criteria. For example, the acceptable natural frequency is under 3 Hz for vibration isolation. Load tests confirm vertical and lateral displacements within 1 mm tolerance under maximum rated pressure. Standards also define corrosion resistance and material elongation thresholds.
Material traceability and compliance
Our supply chain is structured for full material traceability. All metallic parts—whether galvanized steel or AISI-304 stainless steel—come with corresponding material certificates. Likewise, rubber compounds are tested for chemical compatibility, aging behavior, and dimensional stability. We use barcode-based tracking systems for individual bellows, enabling us to trace every component from sourcing to assembly. During batch production, samples undergo burst tests and fatigue cycles to simulate long-term usage. The rubber wall thickness is checked at critical points using ultrasound gauges, ensuring uniform 0.5 to 2.5 mm thickness depending on the model. Each unit’s curing cycle, vulcanization profile, and adhesion strength are logged into our digital records. This traceability system supports our ability to perform rapid corrective actions, should any compliance issues arise during post-market surveillance.
Testing protocols and validation
Our testing protocols cover a range of mechanical and performance evaluations. For air bellows, this includes: – Hydrostatic pressure testing to verify burst resistance. – Dynamic fatigue testing across millions of cycles. – Compression and elongation measurements under load. – Thermal aging simulation in chambers up to 115°C. In four-ply designs, working pressure capacity rises to 12 bar. These are validated against application-specific loading scenarios. All tests are recorded in structured reports that become part of the CE technical documentation. We also conduct visual inspections, leak detection, and dimensional checks post-manufacturing to ensure compliance with product specifications. Specific tests simulate 50 Hz vibration exposure for 72 hours under full load, ensuring mechanical durability. Our air bellows show less than 2% hysteresis loss, validating their long-term reliability.
Integration into larger systems
Although we focus solely on non-automotive uses, our air springs are often integrated into custom mechanical systems by end users. Therefore, we ensure compatibility through clear interface definitions, including: – Thread size and bolt pattern specifications. – Port dimensions for air inlet and outlet. – Axial motion range and lateral flexibility limits. This facilitates seamless integration without compromising system safety or pressure performance. We offer support documentation in multiple languages to assist clients in machinery directive compliance when using our air bellows in OEM assemblies. Our standard bellows support offset motions up to 30 mm and tilt angles up to 25°, validated through dedicated test rigs. These specs allow safe use in robotic mounts, industrial platforms, and process automation modules, where flexibility and height adjustability are key.
Common pitfalls in CE certification
Achieving CE marking can be challenging without experience. The most common errors include: – Ignoring PED applicability thresholds. – Providing incomplete or outdated technical documentation. – Omitting necessary conformity declarations. – Failing to engage Notified Bodies for higher-risk products. We avoid these issues through standardized internal audit procedures, detailed process checklists, and regular staff training on current EU legislation. This results in smoother certification cycles and reduced product launch delays. Our proactive approach ensures that all rubber-metal isolators meet European safety standards without compromising on design flexibility or performance. In addition, we conduct mock audits simulating CE review processes to identify any technical gaps. Our quality assurance teams monitor over 30 parameters during final inspection.
Final steps and ongoing responsibilities
Once the CE mark is affixed, our job is not over. We maintain up-to-date technical files, monitor regulatory changes, and document all design modifications. For each new product variation, we assess whether a new CE process is needed or whether the existing certification extends to the updated version. Our quality control systems continuously evaluate product consistency. We engage in market surveillance, address any customer complaints, and perform corrective actions as necessary. We perform annual compliance audits, review incident reports, and retrain personnel on updated safety measures. We also monitor our raw material suppliers through REACH and RoHS screening, ensuring no restricted substances are introduced. This complete lifecycle approach ensures that our air bellows remain compliant, safe, and market-ready across all industrial sectors they serve.
