Industrial systems generate a wide spectrum of mechanical disturbances that travel through structural components, reducing performance and increasing wear. The most effective way to manage these disturbances is through vibration isolation using air springs. This article explains the physics behind this technology, its unique advantages, and how air spring systems outperform traditional isolators. By understanding the vibration mechanics, natural frequencies, and load behavior, engineers can design installations that improve equipment longevity, operator comfort, and production quality. Air springs are versatile components that combine mechanical flexibility with pneumatic control. Their efficiency in both passive damping and dynamic isolation makes them indispensable in modern industrial systems.
How Air Springs Interrupt Vibration Transmission
The core principle behind vibration isolation using air springs is the transformation of oscillatory energy into controlled pneumatic motion. When equipment vibrates, energy is transmitted through its base structure. A properly selected air spring acts as a mechanical low-pass filter. It allows slow movements such as settling and thermal expansion but resists high-frequency oscillations. The rubber bellow, filled with pressurized air, deforms elastically under load. This deformation absorbs and dampens incoming kinetic energy. The natural frequency of the system determines which vibrations are attenuated or amplified. Isolation occurs when the exciting frequency is at least 1.4 times greater than the air spring’s natural frequency. This makes air springs highly effective for machinery, presses, and sensitive instruments.
Natural Frequency and Its Impact on Isolation Efficiency
A key factor in vibration isolation using air springs is the system’s natural frequency. This is the rate at which the air spring oscillates when displaced from equilibrium. It is a function of both the air spring’s stiffness and the supported mass. Lower natural frequencies result in better isolation of low-frequency vibrations. Air springs typically operate between 1.5 and 5 Hz, far lower than metal coil springs. This allows them to isolate disturbances from compressors, turbines, and unbalanced rotating equipment. The spring rate of an air bellow is non-linear, which means isolation remains effective over a wide load range. By adjusting internal pressure, engineers can fine-tune natural frequency without changing hardware. This tunability is a major benefit over fixed-rate isolators.
Dynamic Load Adaptation with Pneumatic Control
Another unique feature of vibration isolation using air springs is their ability to maintain constant performance under changing loads. In traditional systems, added weight increases stiffness and raises natural frequency, reducing isolation. Air springs overcome this through air pressure regulation. An external valve system compensates for load variation, keeping the design height and stiffness constant. This makes them ideal for conveyor lines, platforms, and modular machinery. As the load increases, the internal pressure is raised, restoring isolation performance. This dynamic adjustment ensures consistent behavior even during load shifts, tool changes, or component swaps. This functionality eliminates the need for recalibration or manual intervention during production changes.
Designing Isolation Systems Based on Excitation Frequency
Proper implementation of vibration isolation using air springs begins with frequency analysis. The exciting frequency—generated by motors, pumps, or process vibrations—must be identified. If it falls within the range of 10–50 Hz, air springs can be tuned to provide optimal damping. Calculating transmissibility using the frequency ratio (excitation frequency divided by natural frequency) helps determine system behavior. Isolation only occurs when this ratio exceeds 1.4. If the ratio is between 0.7 and 1.4, the system may resonate, amplifying rather than damping vibration. Engineers must ensure that mounting dimensions, stroke limits, and load ranges are compatible with the selected air spring. Pre-installation simulations can confirm performance before commissioning. This data-driven approach is essential to achieving reliable vibration isolation in demanding industrial environments.
Material and Construction Considerations for Optimal Isolation

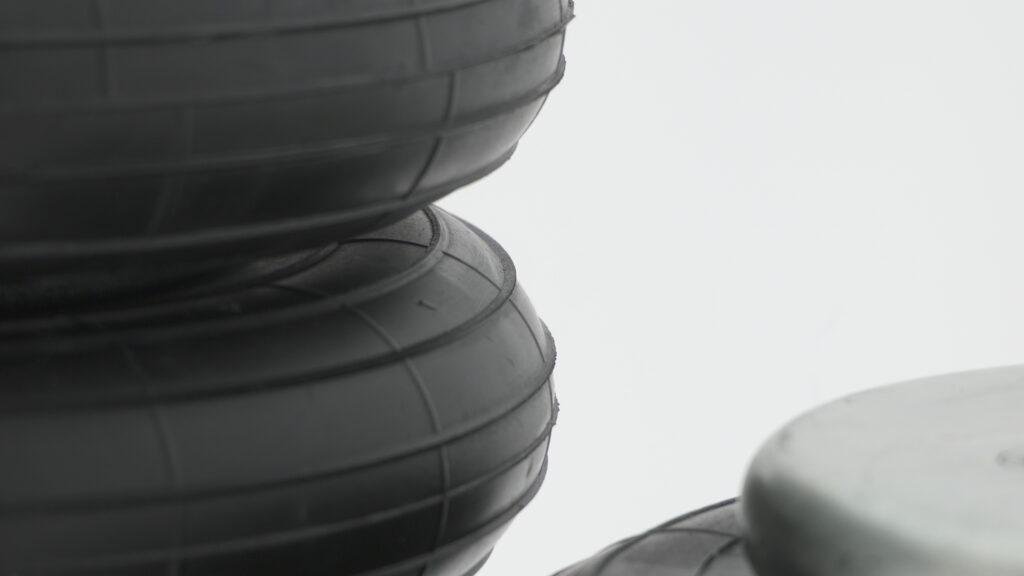

The performance of vibration isolation using air springs also depends on the materials used. Natural rubber offers excellent elasticity, while NBR and EPDM provide durability in oil-rich and outdoor environments. Reinforced fabric plies prevent over-expansion and maintain cylindrical shape under pressure. Multi-ply bellows offer better fatigue resistance, especially in cyclic applications. Metal end closures must be rigid and corrosion-resistant. Poor material selection can lead to hardening, cracking, or structural collapse. Properly selected materials maintain consistent isolation over millions of load cycles. Additionally, vibration transmission through mounting bolts can be minimized by using isolating washers or floating plates. Every element must contribute to the system’s elasticity and damping behavior to achieve maximum efficiency.
Advantages Over Conventional Isolation Systems
Vibration isolation using air springs offers multiple advantages over mechanical springs, rubber pads, and hydraulic dampers. Air springs provide lower natural frequencies, making them more effective at isolating low-frequency vibrations. They allow vertical, lateral, and angular movement, which is not possible with rigid isolators. They operate silently and require no lubrication or moving parts. The ability to adjust internal pressure means that performance can be optimized without hardware changes. In contrast, steel springs lose effectiveness with variable loads, and elastomeric pads may degrade quickly. Air springs reduce noise, fatigue, and structural stress, resulting in longer equipment life and better working conditions. Their compact design also saves space and simplifies integration into new and existing systems.
Application Examples Across Industrial Sectors
Real-world implementations of vibration isolation using air springs demonstrate their versatility. In press machines, air springs reduce impact forces and extend tooling life. In packaging lines, they prevent product misalignment caused by mechanical shake. In metrology platforms, they eliminate micro-vibrations that affect precision. Large machinery with unbalanced motors benefits from reduced base excitation and less noise transmission. Even entire production lines can be isolated using air spring mounts, providing a floating base that protects both equipment and operators. Whether in HVAC units, electronic assembly, or pharmaceutical processing, air springs contribute to stability, efficiency, and uptime. Their adaptability and proven performance make them a critical element in modern vibration control engineering.
