In modern hydraulic lift systems, efficiency, durability, and reliability are crucial. Air bellows play an essential role in improving performance by providing superior load support, vibration isolation, and adaptability across various industrial applications. Understanding their function, benefits, and technical specifications is vital for businesses seeking optimal lifting solutions.
Air bellows can support extreme loads while maintaining consistent performance. They are designed with reinforced elastomer compounds and durable metal components. These specifications allow them to operate under high pressures and varying environmental conditions. Most air bellows operate at a maximum pressure of 8 bar, with specialized models reaching 12 bar. Additionally, they maintain flexibility across a wide temperature range, ensuring performance in extreme environments. The ability to absorb vibrations while stabilizing load movement makes them indispensable in precision lifting. Their reliability extends system lifespan and minimizes maintenance costs.
How Air Bellows Improve Hydraulic Lift Systems
Load Distribution and Weight Handling
One of the primary advantages of air bellows in hydraulic lift systems is their ability to distribute loads evenly. Unlike rigid mechanical supports, air bellows offer:
- Uniform load distribution over a broad surface area.
- Reduced localized stress on lifting components.
- The ability to accommodate high dynamic loads without structural failure.
Each air bellow consists of reinforced fabric plies between inner and outer rubber covers. These elements provide exceptional strength and flexibility. Standard air bellows handle weights up to 450 kN per unit. Their ability to maintain shape under heavy loads prevents mechanical deformation. Hydraulic lift systems benefit from this property, as it ensures stable and controlled lifting. Load distribution also reduces wear on hydraulic cylinders, prolonging their operational lifespan. This property makes air bellows an essential component for high-precision lifting applications in industrial and automotive sectors.
Vibration and Shock Absorption
Industrial hydraulic lift systems often experience vibrations that can lead to premature wear. Air bellows act as highly effective vibration isolators by:
- Absorbing unwanted mechanical oscillations.
- Reducing operational noise.
- Enhancing the lifespan of mechanical components.
Standard air bellows can isolate up to 99% of unwanted vibrations, depending on design and pressure settings. Their low natural frequency, often below 2 Hz, makes them ideal for vibration-sensitive applications. Unlike steel springs, air bellows adjust to variable load conditions without losing efficiency. The reinforced elastomer construction provides long-term durability in high-frequency operations. By integrating air bellows into hydraulic lift systems, manufacturers can achieve reduced mechanical fatigue and enhanced system longevity. These characteristics make them an excellent choice for environments requiring precision and low noise levels, such as aerospace, automotive, and manufacturing industries.
Adjustable Height and Positioning
Air bellows allow for flexible height adjustments in hydraulic lift systems, which is particularly beneficial in applications where:
- Variable load heights are required.
- Precise positioning is necessary for operations.
- Space constraints demand a compact lifting solution.
Most air bellows provide a stroke range between 50 mm and 375 mm, depending on the model. Their compact design allows them to fit into restricted spaces while delivering optimal lifting performance. By regulating internal air pressure, air bellows offer smooth and controlled movement without sudden jerks. This enhances user safety and system stability. High-performance models incorporate metal-reinforced end closures, ensuring secure attachment to hydraulic lifting platforms. Their adaptability makes them suitable for a range of industries, from logistics to aerospace. By integrating air bellows into hydraulic lift systems, manufacturers improve precision and reduce energy consumption in height-adjustment operations.
Design and Construction of Air Bellows
Materials and Durability
The performance of air bellows is significantly influenced by the materials used in their construction. Tevema manufactures air bellows using:
- Natural rubber (NR/SBR): Standard for general applications, offering high dynamic capability.
- Chlorobutyl (CIIR): Superior resistance to acids and elevated temperatures.
- Nitrile rubber (NBR): Excellent resistance to oils, fuels, and outdoor conditions.
- Ethylene Propylene Diene Monomer (EPDM): Exceptional weathering and ozone resistance.
- Chloroprene (CR): Balanced resistance against oil and environmental exposure.
Standard air bellows withstand temperatures from -40°C to +115°C, depending on the elastomer type. Tevema offers models with stainless steel end plates for enhanced corrosion resistance. The bead ring and crimped designs allow for easy installation. Metal reinforcement ensures structural integrity under extreme pressures. By using premium elastomers, Tevema guarantees durability in harsh environments, making air bellows suitable for long-term industrial use.
Types of Air Bellows
Different configurations of air bellows cater to various industrial needs:
- Single convolution: Best for applications requiring limited stroke movement.

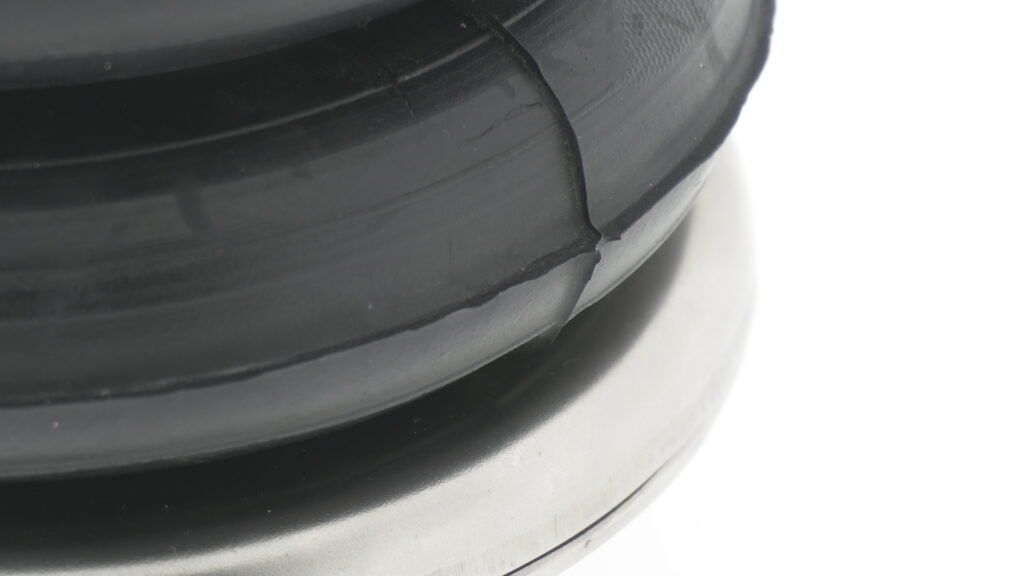

- Double convolution: Ideal for moderate travel applications with increased flexibility.
- Triple convolution: Designed for extensive stroke requirements, providing greater height range and load capacity.
Triple convolution models can handle stroke lengths exceeding 350 mm while maintaining high load-bearing capacity. Their reinforced rubber composition allows for smooth axial movement without compromising structural integrity. The ability to function under variable air pressures makes them a versatile solution for lifting applications. Their modular design also allows for easy replacement and customization based on operational requirements. By selecting the appropriate air bellow, industries can optimize lifting performance while reducing maintenance needs.
Air bellows significantly improve hydraulic lift systems by offering superior load handling, vibration isolation, and precise height control. With their robust construction, cost-effectiveness, and maintenance-free operation, they stand out as essential components in modern industrial applications. Investing in high-quality air bellows ensures long-term efficiency and reliability, making them a smart choice for businesses aiming to optimize their hydraulic lift systems.
