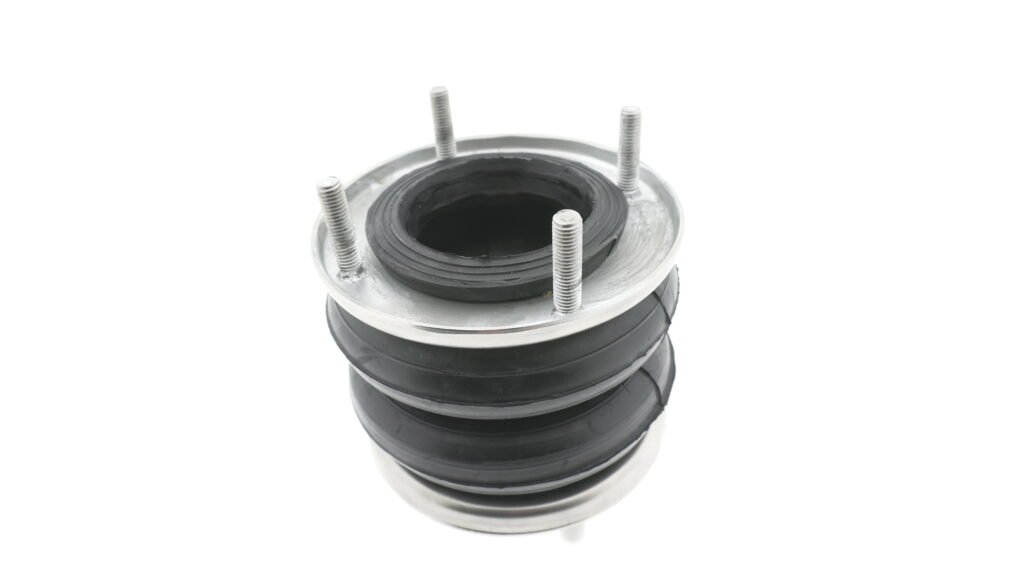

Understanding the Impact of Pressure on Air Bellows Performance

Accurate air bellows force calculations are critical for ensuring optimal performance in industrial and mechanical applications. The force generated by air bellows depends on the internal air pressure and the effective area of the bellows. By fine-tuning these parameters, we can maximize efficiency, durability, and reliability across different operational conditions. Additionally, factors such as bellow diameter, convolution type, and reinforcement layers significantly affect the operational load capacity.

For instance, a single convolution air bellow with a diameter of 120 mm may have a maximum force output of 8000 N at 8 bar, whereas a triple convolution bellow of the same material can exceed 15,000 N. Proper force calculations ensure that systems operate efficiently without exceeding material limits.

Fundamentals of Force Calculation in Air Bellows

The primary equation for determining the force exerted by an air bellow is:

[ F = P \times A ]

where:

• F is the generated force (N),
• P is the applied internal pressure (bar or Pa),
• A is the effective surface area of the bellow (m²).

By adjusting the air pressure, we can control the lifting capacity, shock absorption, and vibration isolation properties of the bellows. The correct calculation ensures that the bellow performs optimally under varying load conditions. A typical 8-inch (200 mm) diameter air bellow can exert a maximum force of approximately 25 kN at 8 bar, making it ideal for heavy-duty applications in the automotive and manufacturing industries.

Variability in Force Output Due to Pressure Changes

Since air bellows are widely used in dynamic applications, their force output changes in response to variations in pressure. A higher internal pressure increases the force, but excessive pressure may lead to material fatigue, reducing longevity.

Key considerations include:

• The maximum working pressure, typically 8 bar for standard designs.
• Four-ply constructions, allowing for operation at pressures up to 12 bar.
• The effect of temperature fluctuations, which can alter the internal air density and subsequently affect force calculations.
• Reinforced elastomer compounds, such as high-strength NR/SBR, extend product lifespan under high-load cycles.
• Multi-convolution designs, which enhance stroke length and force distribution over larger areas.

Material Considerations for Optimal Performance

The air bellows’ force output is also influenced by material composition. Selecting the right elastomer and metallic components is crucial for efficiency:

• Natural Rubber (NR/SBR): High flexibility and shock absorption, operational from -40°C to +70°C.
• Chlorobutyl (CIIR): Excellent acid resistance, operating range of -30°C to +115°C.
• Nitrile (NBR): Superior oil and ozone resistance, operational up to +110°C.
• EPDM: Outstanding performance in extreme temperatures, up to +115°C.
• Chloroprene (CR): Balanced oil resistance and weatherproofing.

Using stainless steel end closures ensures corrosion resistance when exposed to water, oil, or nitrogen environments. Electro-galvanized steel plates provide a cost-effective alternative with moderate corrosion resistance.

Pressure Optimization for Different Applications

Vibration Isolation

In isolation applications, air bellows act as dynamic dampers. Key factors affecting performance:

• Maintaining an optimal internal pressure to achieve a natural frequency as low as 1.4 Hz.
• Ensuring a consistent design height to prevent force fluctuations.
• Adapting to alternating loads while maintaining stable operation.
• Using dual-layer elastomers, which enhance vibration absorption and minimize energy loss.
• Choosing triple convolution designs, which provide improved vertical deflection capabilities.

Pneumatic Actuation

For use in actuators, air bellows provide:

• Lateral flexibility, accommodating misalignments up to 30 mm.
• Compact height, making them ideal for space-limited applications.
• Even force distribution, avoiding the “stick-slip” effect seen in rigid actuators.
• Multiple stroke configurations, enabling forces of up to 45 kN at 8 bar.
• Self-damping capabilities, which reduce the need for additional shock absorbers in high-impact applications.

Practical Example: Force Calculation at Varying Pressures

Let’s consider an air bellow with an effective area of 0.02 m² and evaluate its force at different pressures:

For a larger diameter air bellow (400 mm), the force output at 8 bar could exceed 40 kN, depending on material strength and convolution design. These values illustrate the linear relationship between pressure and force, allowing for precise control over mechanical outputs.

Understanding and optimizing air bellows force calculations for varying pressures is essential for ensuring operational efficiency and longevity. By selecting the right materials, adjusting working pressures, and considering application-specific requirements, we can enhance air bellow performance across diverse industrial environments. Incorporating multi-layered elastomers, optimizing stroke length, and using high-strength end closures further enhances operational durability and performance.
