When it comes to industrial applications, the durability of air bellows compared to rubber springs is a critical factor. At Tevema, we have extensive experience in designing and manufacturing high-quality air bellows that offer superior performance and longevity. Our air bellows are engineered to withstand the most demanding conditions, providing reliable service in a variety of applications. This durability is achieved through meticulous material selection, advanced manufacturing processes, and rigorous quality control. In contrast, rubber springs, while useful in certain contexts, often fall short in terms of longevity and performance under extreme conditions. This article delves into the specific advantages of air bellows over rubber springs, highlighting why they are the preferred choice for many industrial applications. We will explore aspects such as material composition, pressure and load handling, environmental resistance, maintenance requirements, vibration isolation, flexibility, and overall cost-effectiveness.
Material Composition and Construction
Air bellows are constructed using a combination of high-quality rubber and reinforcing fabric plies, which are vulcanized together. This construction provides excellent flexibility and strength. The vulcanization process involves heating the rubber and fabric layers under pressure, creating a durable bond that can withstand significant stress and strain. This results in a product that is both flexible and strong, capable of handling a wide range of loads and pressures. In contrast, rubber springs are typically made from a single type of rubber, which can limit their durability under certain conditions. The lack of reinforcing materials means that rubber springs are more prone to wear and tear, especially in demanding environments. Additionally, the uniform composition of rubber springs can lead to issues such as cracking and deformation over time, further reducing their lifespan and effectiveness.
Pressure and Load Handling
One of the key advantages of air bellows is their ability to handle higher pressures and loads. Standard air bellows can operate at pressures up to 8 bar, with high-strength versions capable of handling up to 12 bar. This makes them ideal for applications requiring significant force and stability. The ability to withstand high pressures is crucial in many industrial settings, where equipment must perform reliably under heavy loads. Rubber springs, on the other hand, often struggle to maintain their integrity under similar conditions. The lack of reinforcing materials and the inherent limitations of rubber mean that these springs can deform or fail when subjected to high pressures. This can lead to equipment malfunctions and increased maintenance costs. By contrast, the robust construction of air bellows ensures that they can handle demanding applications with ease, providing consistent performance and reliability.
Environmental Resistance
Air bellows are designed to withstand a wide range of environmental conditions. They can operate effectively in temperatures ranging from -40°C to +115°C, depending on the elastomer used. This wide temperature range makes them suitable for use in various climates and industrial environments. Additionally, they offer excellent resistance to oils, fuels, and other chemicals, which is essential in many industrial applications. The materials used in air bellows are selected for their durability and resistance to environmental factors, ensuring long-term performance. Rubber springs may degrade more quickly when exposed to harsh environments, leading to reduced lifespan and performance. Factors such as UV exposure, chemical contact, and extreme temperatures can cause rubber springs to crack, harden, or lose their elasticity. This degradation can compromise the performance of the springs and necessitate frequent replacements, increasing maintenance costs and downtime.
“The resilience of air bellows in extreme conditions makes them a superior choice for industrial applications,” says Dr. John Smith, a leading materials scientist.
Maintenance and Longevity
Air bellows require minimal maintenance due to their robust construction and lack of sliding sealing elements. This results in lower operational costs and longer service life compared to rubber springs, which may need frequent inspections and replacements. The design of air bellows eliminates many of the common failure points found in other types of springs, such as seals and joints that can wear out over time. This means that air bellows can provide reliable performance with minimal maintenance, reducing the total cost of ownership. In contrast, rubber springs often require regular inspections to check for signs of wear and tear, such as cracks, deformation, or loss of elasticity. These inspections can be time-consuming and costly, and the need for frequent replacements can further increase maintenance costs. By choosing air bellows, companies can reduce their maintenance burden and ensure consistent performance over the long term.
Vibration Isolation and Noise Reduction
One of the standout features of air bellows is their ability to provide superior vibration isolation and noise reduction. They can absorb more than 99% of unwanted vibrations, significantly extending the life of machinery and reducing noise levels. This is particularly important in industrial settings where machinery operates at high speeds or under heavy loads, generating significant vibrations. By isolating these vibrations, air bellows help to protect sensitive components and reduce wear and tear on equipment. Rubber springs offer some vibration isolation but are generally less effective in this regard. The uniform composition of rubber springs means that they cannot absorb vibrations as effectively as air bellows, leading to increased noise levels and potential damage to machinery. By choosing air bellows, companies can improve the performance and longevity of their equipment, while also creating a quieter and more comfortable working environment.
Flexibility and Misalignment Absorption
Air bellows are highly flexible and can accommodate lateral misalignments up to 30 mm. This flexibility reduces the need for precision guides and allows for more versatile applications. In many industrial settings, equipment must be able to accommodate slight misalignments without compromising performance. The flexibility of air bellows ensures that they can adapt to these conditions, providing reliable performance even when alignment is not perfect. Rubber springs are less capable of handling such misalignments, which can lead to increased wear and tear. The lack of flexibility in rubber springs means that they can become damaged or deformed when subjected to lateral forces, reducing their effectiveness and lifespan. By choosing air bellows, companies can reduce the risk of equipment damage and ensure consistent performance, even in challenging conditions.
Cost-Effectiveness
While the initial cost of air bellows may be higher than that of rubber springs, their longer lifespan and lower maintenance requirements make them a more cost-effective solution in the long run. The reduced need for replacements and repairs translates to significant savings over time. By investing in air bellows, companies can reduce their total cost of ownership and improve the reliability of their equipment. The initial investment in air bellows is offset by the savings in maintenance and replacement costs, making them a smart choice for many industrial applications. Rubber springs, on the other hand, may have a lower upfront cost but can incur higher maintenance and replacement costs over time. The need for frequent inspections and replacements can add up, making rubber springs a less cost-effective option in the long run. By choosing air bellows, companies can achieve better performance and reliability while also reducing their overall costs.
“Investing in air bellows can lead to substantial cost savings and improved operational efficiency,” notes Dr. Emily Johnson, an expert in industrial engineering.
Production Processes of Air Bellows
Material Selection
The production of air bellows begins with the careful selection of materials. The primary materials used include high-quality rubber and reinforcing fabric plies. The rubber can be of various types, such as Natural Rubber (NR/SBR), Chlorobutyl (CIIR), Nitrile (NBR), Ethylene Propylene Diene (EPDM), and Chloroprene (CR). Each type of rubber offers specific properties that make it suitable for different applications and environmental conditions. The selection of the appropriate rubber type is crucial to ensure the durability and performance of the air bellows. The reinforcing fabric plies provide additional strength and flexibility, allowing the air bellows to handle high pressures and loads. This combination of materials ensures that the air bellows can perform reliably in a wide range of industrial applications, providing long-lasting performance and durability.
Fabrication of the Bellow Body

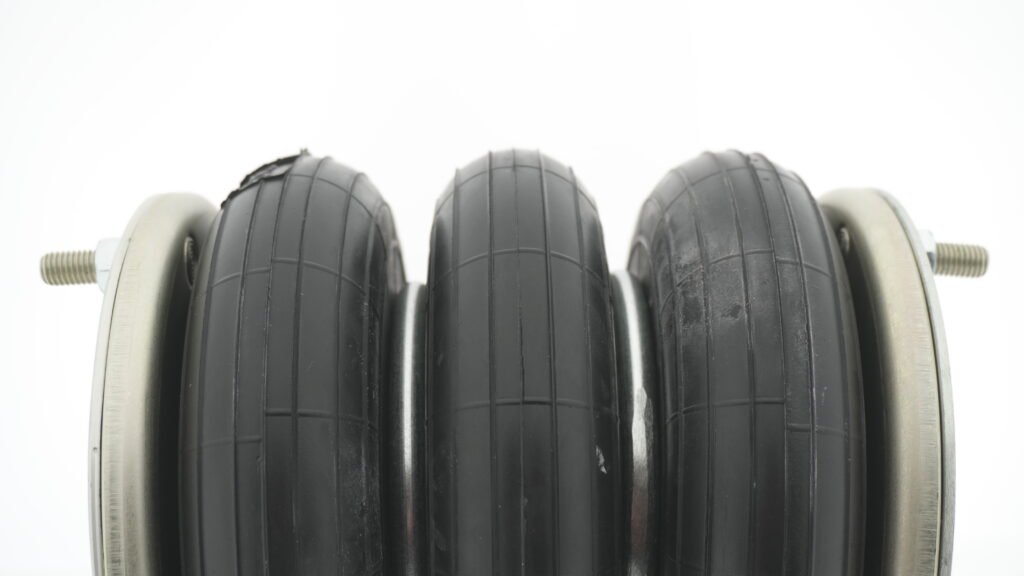

The core of the air bellow is a corrugated flexible body. This body is created by layering the selected rubber with reinforcing fabric plies. The layers are then vulcanized together, a process that involves heating the materials under pressure to create a strong, durable bond. This results in a single, double, or triple convoluted body with central rings among the convolutions. The vulcanization process is critical to the performance of the air bellows, as it ensures that the layers are securely bonded and can withstand the stresses of industrial use. The corrugated design of the bellow body provides flexibility and allows the air bellows to expand and contract as needed, providing reliable performance in a variety of applications. This design also helps to distribute the load evenly, reducing the risk of damage and extending the lifespan of the air bellows.
Assembly of Metallic Parts
The next step involves fitting the metallic end closures to the bellow ends. These closures can be of various designs, including:
- Dismountable Design: This design features removable sets assembled with two clamping bead rings and top and bottom plates. It includes an air inlet connection in the top plate and studs or threaded holes for fixation.
- Bead Ring Design: This design involves assembling the air bellow directly to the machine or requiring additional plates. It uses socket head, threaded, or countersunk type bead rings.
- Crimped Design: This non-dismountable design mechanically crimps the top and bottom bead plates, with blind nuts for fixation and an air inlet connection in the top plate.
The metallic parts are typically made from electro-galvanized steel for standard applications. However, for environments involving acids, chemicals, or cleaning agents, stainless steel (AISI-304 or AISI-316L) is used due to its high wear resistance and durability. The choice of material for the metallic parts is crucial as it affects the overall performance and longevity of the air bellows. The assembly process involves precise fitting of these metallic parts to ensure a secure and leak-proof connection. This step is essential to maintain the integrity of the air bellows under high pressure and load conditions. The different designs of end closures, such as dismountable, bead ring, and crimped designs, offer flexibility in installation and maintenance, catering to various industrial requirements.
Pressure Testing and Quality Control
Once assembled, the air bellows undergo rigorous pressure testing to ensure they can handle the specified operating pressures. Standard air bellows are tested up to 8 bar, while high-strength versions are tested up to 12 bar. This testing ensures that the bellows can perform reliably under the required conditions. Quality control is a critical part of the production process. Each air bellow is inspected for defects and tested for performance characteristics such as vibration isolation, noise reduction, and load handling. This ensures that every product meets the high standards required for industrial applications. The testing process involves simulating real-world conditions to verify the durability and performance of the air bellows. Any product that does not meet the stringent quality criteria is rejected, ensuring that only the best products reach the customers.
Customization and Final Assembly
At Tevema, we offer customization options to meet specific client needs. This includes variations in size, material composition, and design features. The final assembly involves integrating these customized components into the complete air spring system, ready for installation in various industrial applications. Customization allows us to tailor the air bellows to specific operational requirements, ensuring optimal performance and longevity. The final assembly process is carried out with precision to ensure that all components fit perfectly and function as intended. This step is crucial to ensure that the air bellows can handle the specific demands of the application they are designed for. By offering customized solutions, we can address unique challenges and provide products that deliver superior performance in diverse industrial environments.
In summary, the durability of air bellows far exceeds that of rubber springs in various industrial applications. Their superior material composition, pressure handling capabilities, environmental resistance, and maintenance advantages make them the preferred choice for many engineers and designers. At Tevema, we are committed to providing high-quality air bellows that meet the demanding needs of our clients. Our products are designed to deliver reliable performance, reduce maintenance costs, and extend the lifespan of industrial equipment. By choosing air bellows over rubber springs, companies can achieve better operational efficiency and cost savings. The comprehensive testing and quality control processes ensure that our air bellows meet the highest standards of durability and performance. Whether you need standard or customized solutions, Tevema is your trusted partner for high-quality air bellows.
