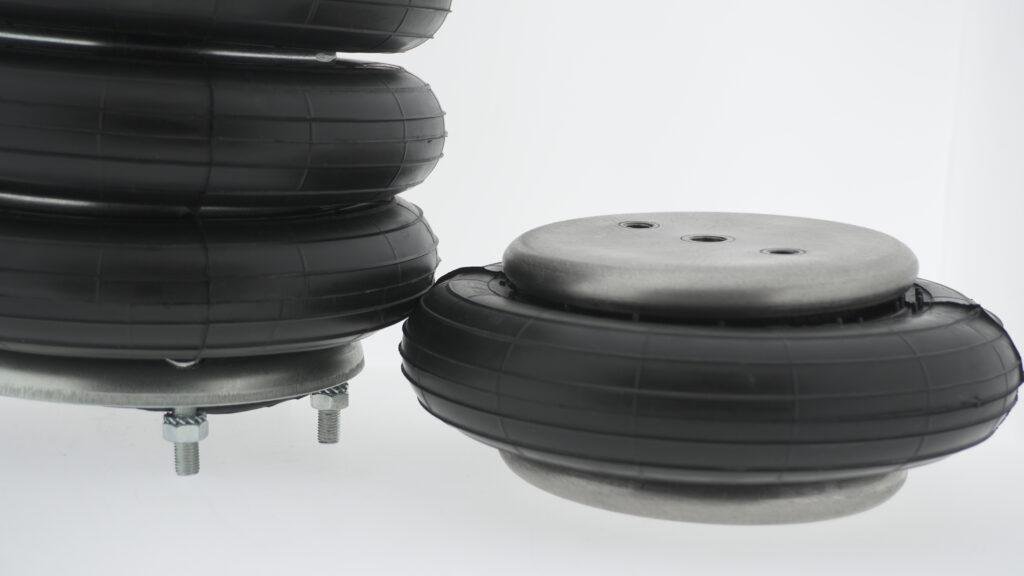

Space exploration demands components that meet extreme conditions without failure. Our air bellows for space are engineered to meet those expectations. They operate reliably under high vacuum, intense vibration, and temperature extremes, delivering consistent performance without friction. Reinforced models sustain internal pressures up to 12 bar and forces over 300 kN, even under continuous axial motion. With natural frequencies from 1.2 Hz to 4.6 Hz, they isolate over 99% of unwanted vibration. We use durable elastomers such as EPDM, NBR, and Chlorobutyl for tailored resistance to ozone, oil, and radiation. All rubber layers are vulcanized with reinforced plies for shape retention. End plates in AISI 304 or 316L stainless steel provide corrosion resistance and durability. Their design eliminates internal lubrication, reducing contamination risks. These specifications ensure long-term functionality in orbital, lunar, or Martian environments. Our focus is creating systems that outperform conventional actuators in space by combining simplicity, reliability, and adaptability in every application.
Emerging demands for air bellows in space environments
New missions require components that are compact, strong, and maintenance-free. Our air bellows for space meet these challenges with precision. Bellows tested at 120 mm design height handle dynamic loads up to 75 kN continuously. Stroke ranges vary from 35 mm to 375 mm, enabling motion control under variable pressure systems. Our bellows eliminate the need for separate dampers, as they provide natural damping and consistent alignment. The structure tolerates lateral misalignment of 30 mm and angular deflection of 25°, which helps in shifting orbital platforms. Air or nitrogen actuation offers clean, vibration-free operation. The internal reinforcement prevents deformation, even during repetitive motion. Systems operate without oil or seals, reducing part failure and extending life. Our solutions absorb shocks caused by equipment activation or environmental changes. They also maintain load-bearing capacity during structural displacement. These capabilities offer engineers a passive, low-maintenance solution to meet the evolving mechanical needs of long-term space platforms.
Material considerations for air bellows in extraterrestrial use
Choosing the right materials is essential for performance in space. Our air bellows for space are constructed for extreme durability. We use Chlorobutyl for acid resistance up to 115°C, EPDM for ozone resistance to +115°C, and NBR for oil resistance. Each elastomer suits specific conditions, offering mechanical stability even after repeated cycles. Internal textile reinforcements give structural strength while allowing flexibility. Bellows are vulcanized to ensure tight bonding between layers. Stainless steel closures are available in AISI 304 or 316L, depending on exposure to chemicals or humidity. These parts resist corrosion and maintain mechanical tolerance under stress. Bellows operate in pressures ranging from 0.2 to 12 bar, depending on construction type. They are compatible with air, nitrogen, or filtered oil. Outer surfaces are reinforced to avoid abrasion or cracking. These material decisions allow consistent actuation and isolation across lunar bases, satellites, and orbital laboratories. Long-term exposure tests confirm our bellows retain integrity under extreme environmental fluctuations without failure.
How air bellows improve vibration isolation in space structures
Precision instruments used in space require stable operation without interference from surrounding forces or movement. Our air bellows for space deliver effective vibration isolation with minimal size and no mechanical wear. With natural frequencies between 1.2 and 2.6 Hz, they block over 99% of unwanted vibration. Models with triple convolutions offer deflections up to 375 mm, ensuring motion absorption across changing loads. Their flexible rubber structure prevents resonance buildup, protecting sensitive systems during operation, launch, or deployment. Each unit responds proportionally to changes in force and load, maintaining consistent vertical support. Our bellows replace metallic isolators, as they provide damping without rebound. They integrate seamlessly beneath sensitive platforms such as antenna systems, telescope mounts, and research equipment. Their compact design also suits low-profile installations where clearance is limited. The pressure-adjustable design ensures adaptability during mission changes or load redistribution. Our isolation technology extends mission duration and system accuracy by shielding components from mechanical disturbance.
Design advantages of air bellows in microgravity
Operating in microgravity environments creates mechanical challenges not present on Earth. Our air bellows for space offer unique advantages in these conditions. They accommodate lateral misalignment up to 30 mm and angular deflection up to 25°, essential for flexible installation. Their low design height—often less than 100 mm—allows compact integration in confined volumes. With no internal pistons or seals, they reduce part friction and eliminate lubrication requirements. This ensures long-term reliability, even in zero-gravity settings. Bellows expand and contract using pneumatic pressure, maintaining accurate positioning without resistance or backlash. Each unit is built with durable rubber and textile layers, enabling consistent movement across full pressure ranges. They support loads up to 300 kN, making them suitable for structural stabilization in floating platforms. Their design supports full actuation in any orientation, whether horizontal or vertical. These features reduce the need for rigid alignment tools. This adaptability makes our bellows ideal for next-generation orbital technology.
Challenges with air pressure control beyond Earth
Space environments lack atmospheric pressure, requiring bellows to manage internal loads without external support. Our air bellows for space are built to function under extreme vacuum. Reinforced designs support pressures up to 12 bar, providing safe operation in sealed systems. Rubber compounds maintain shape without collapsing, even during long-term exposure to negative pressure. We use closed-loop pneumatic control systems with embedded pressure sensors to maintain stability across changing temperatures. In vacuum chambers, bellows are tested for volume retention and leakage prevention. When pressurized with nitrogen, performance remains stable within acceptable deviation thresholds. Crimped closures and bead rings ensure airtight sealing, even during flexion or tilt. Each unit includes a built-in safety margin to prevent over-expansion or failure. Materials used resist thermal fatigue and radiation exposure. Our designs are compatible with automated regulation, ensuring internal pressure is precisely managed. This ensures safe deployment and long-term actuation for bellows operating far beyond Earth’s surface.
Using air bellows for equipment stabilization in orbital platforms
Equipment aboard orbital platforms is exposed to motion, vibration, and shifting loads. Our air bellows for space are ideal for passive stabilization. They absorb mechanical movement and preserve instrument alignment without requiring complex control systems. Bellows with natural frequencies under 3 Hz prevent resonance transfer to delicate structures. Their design compensates for mounting misalignments, protecting components from fatigue or drift. Load-bearing models support forces up to 300 kN, ensuring stable positioning for larger instruments. These bellows respond instantly to vibration or displacement, isolating high-precision tools from structural disturbances. Their compact dimensions allow use beneath scientific payloads, sensor arrays, and lab modules. Bellows with multiple convolutions increase stroke capacity, accommodating expansion and contraction without losing performance. Internal elastomer layers suppress noise and vibration transmission. Stainless steel elements maintain strength in pressurized or humid environments. These features provide reliable stabilization with minimal maintenance. Our bellows are essential in safeguarding mission-critical systems where precise alignment is crucial.
